Chipchope

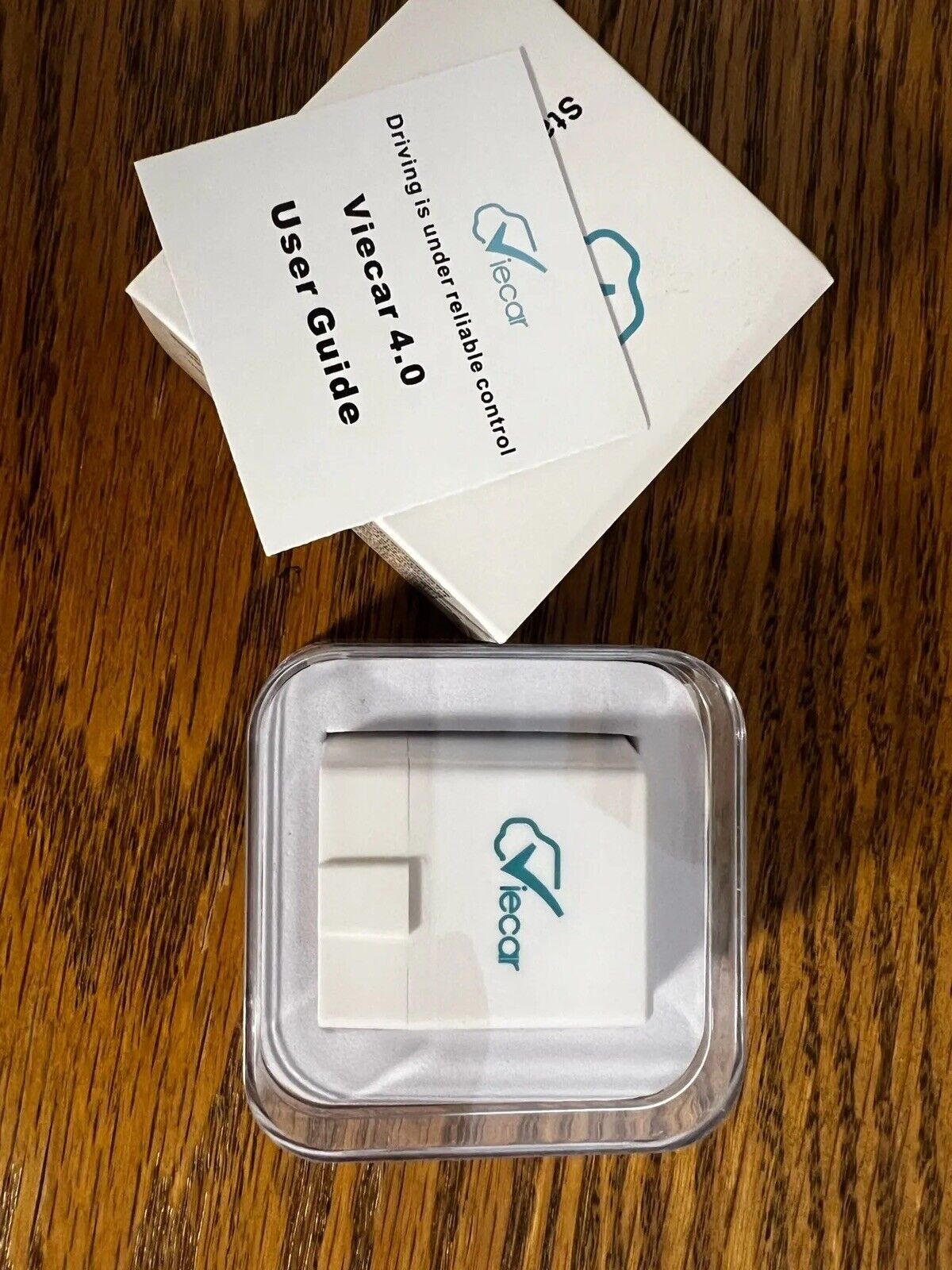

Viecar Bluetooth OBD-II OBD2 Diagnostic Interface Auto Moto ELM327 Android IOS

Viecar Bluetooth OBD-II OBD2 Diagnostic Interface Auto Moto ELM327 Android IOS

Prezzo di listino €29,00 EUR
Prezzo di listino Prezzo scontato €29,00 EUR
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.

Viecar Bluetooth OBD2 Diagnostic Interface Auto Moto ELM327 Android IOS.

Viecar ELM327 Compatibile Con Bluetooth 4.0 (FW V1.5, reale 25k80 chip, supporta IOS/Android/windows, supporta tutti i protocolli di obd2).


Descrizione:

1.Viecar 4.0 è un prodotto elettronico per auto multifunzionale e completo con il corpo più piccolo e più chip al mondo.

2.Viecar supporta Android/iOS con bluetooth 4.0

3.Viecar 4.0 trasferisce i dati rapidamente, con il vantaggio di una bassa dissipazione di potenza e consente di risparmiare energia.

4.Viecar 4.0, comprende l'analisi e la valutazione del consumo di carburante

5.Viecar 4.0 registra anche il comportamento di guida, analizza le informazioni sull'auto, suggerisce miglioramenti per aiutarci a correggere le nostre cattive abitudini di guida.

6. Collegando la ECU della auto e il computer, si realizza che il test dell'intera auto a 360 gradi , analizza i codici errore e li elimina ove previsto , consente inoltre di effettuare altre funzioni .



Specifiche:

Comunicazione: Bluetooth Dual (2.0/4.0)

Piattaforma software: Android/IOS

Potenza: 9V-16V

Corrente elettrica: 45mA

Temperatura: -40 C~85 C

Umidità: inferiore al 60%

Dimensioni: 45 mm*40 mm*18 mm

Modello: per auto OBDII


Protocollo OBD-II supportato:


SAE J1850 PWM (41.6 Kbaud)

SAE J1850 VPW (10.4 Kbaud)

ISO 9141-2 (5 baud inizializzazione, 10.4 Kbaud)

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (inizializzazione rapida, 10.4 Kbaud)

CAN ISO15765-4 (ID 11bit, 500 Kbaud)

CAN ISO15765-4 (ID 29bit, 500 Kbaud)

CAN ISO15765-4 (ID 11bit, 250 Kbaud)

CAN ISO15765-4 (ID 29bit, 250 Kbaud


Veicoli Compatibili :


Vetture con OBD2 ( Dal 1996 in poi in Usa) E EOBD (Europa per vetture benzina dal 2001 in poi diesel prodotti dal 2004 in poi )



Software compatibile:


Windows: ScanMaster-ELM, ScanTool.net, PCMSCAN

Android: Torque_Pro, DashCommand, EOBD2

iOS : mini obd , geekobd , obd auto doctor

Symbian: OBDScope



Nota bene : Alcune app possono essere a pagamento, l'utente dovrà provvedere da se per l'installazione. Le app da scaricare non sono incluse nell'annuncio , da acquistare separatamente



Per connessione bluetooth , se su alcuni modelli non funziona provate a seguire la seguente procedura :


1: Aprire il bluetooth senza però collegare il dispositivo

2: Aprire il software consigliato per fare funzionare il dispositivo

3: Aprire la pagina delle impostazioni

4: Collegare il bluetooth nella pagina delle impostazioni , chiudere e riaprire l'applicazione .


Il pacchetto include:

1 x strumento scanner Bluetooth Viecar 4.0 Obd2


Eng description:

Viecar 4.0 is a software + hardware multi-functional, comprehensive in-vehicle high-tech automotive electronics products, using Bluetooth 4.0 dual-mode design, perfectly support for IOS and Android devices and high-speed data transmission, along with low power consumption, really save

power. Via connecting with in-vehicle ECU computer to achieve interface 360 degree experience of whole car, early find vehicle Sub-health, also ensures vehicle in warranty early find fault so that promptly take appropriate measures, protect the interests of the owners ; by analyzing and assessing for this time and historical and other multi-dimensional fuel consumption, help car owners saving fuel even money; also recording driving behavior, analyzing condition data, recommending for improvement, and promptly correcting bad driving habits, in order to drivers canbe more human to use their own car.


Viecar 4.0 is no longer simply a screen information display system, but through stunning

head-up display (HUD), let drivers no longer have to bow to watch the meter, while enjoying the

pilot driving experience, and eliminating the potential safety problems from bowing to watch

meter. Cool real-time dashboard design, extended original car without display data; very largely

enhance the visual experience.


Product Parameters:

1. Communication method: Bluetooth dual-mode (2.0/4.0)

2. Software platform: Support Android / IOS / Windows

3. Operating voltage: 9V~16V

4. Operating current: 45mA

5. Operating temperature: -40 C~85C

6. Operating humidity: 7. Dimensions: 45mm*40mm*18mm

8. Supported vehicle: OBDII protocol vehicle


Supports OBDII protocols:

SAE J1850 PWM (41.6 Kbaud)

SAE J1850 VPW (10.4 Kbaud)

ISO 9141-2 (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (fast init, 10.4 Kbaud)

ISO15765-4 CAN (11bit ID, 500 Kbaud)

ISO15765-4 CAN (29bit ID, 500 Kbaud)

ISO15765-4 CAN (11bit ID, 250 Kbaud)

ISO15765-4 CAN (29bit ID, 250 Kbaud)


Software description:

Viecar 4.0 using self-developed Viecar software, more user-friendly interface designed to provide

continuous software upgrades, and much powerful. Buying product, can obtain the right to use

the software, no additional cost to purchase software. And one-year hardware warranty.


Software features:

Software can perform the following operations:

Read error diagn

ostic codes - General and manufacturers special use, and display their meaning

(Database has over 3000 generic code definitions)

Clear the error code and shut off the MIL ( "Check Engine" light)

Display current sensor data, comprising:

Engine revolutions p

er minute (RPM)

The calculated load value

Coolant temperature

Fuel System Status

Speed

Short-term fuel situation

Long-term fuel situation

Intake manifold pressure

Injection advance time

Intake air temperature

Air flow rate

Absolute throttle position

Oxygen-sensing voltage associated with the short-term fuel state

Fuel System Status

The fuel pressure

Fuel consumption monitoring and many other data ......


Software features:

Data chart display and logging

Freeze frame data

Continuous and discontinu

ous oxygen probe results


Compatible software:

Window: ScanMaster-ELM, ScanTool.net, PCMSCAN

Android: Torque_Pro, DashCommand, EOBD

IOS: DashCommand, EOBD,Viecar

Symbian: OBDScope


Package Included:

1 X Viecar 4.0 Bluetooth
